| PERFIL | IMAGEN | VELOCIDAD MÁXIMA | RANGO DE TEMPERATURA | MATERIAL | DIAGRAMA |
|---|---|---|---|---|---|

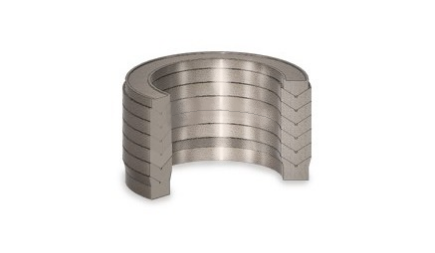

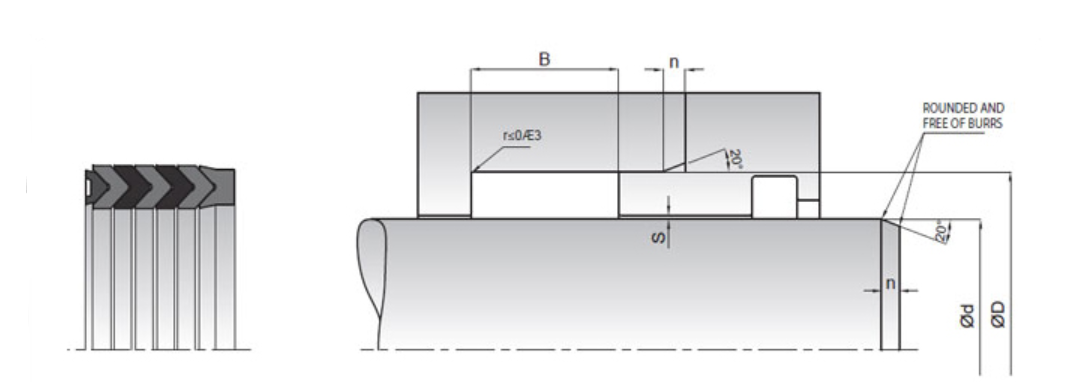

| CHEVRON |  |
0.5 m/sec | -30°c / +105°c | PU / NBR / POM | VER |

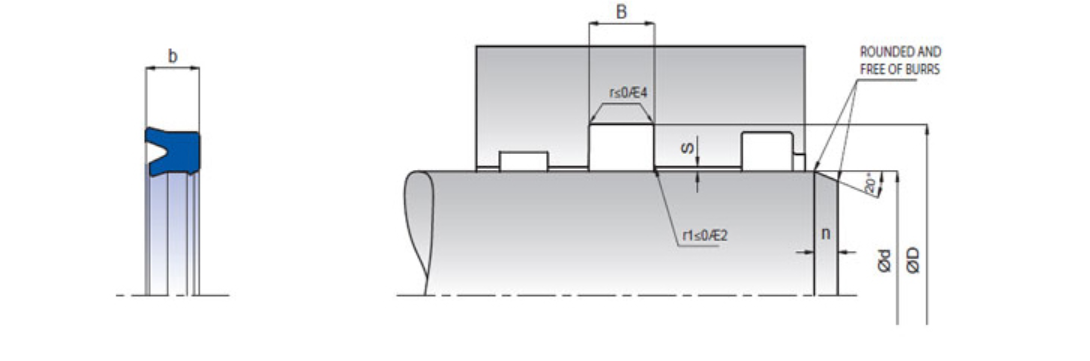

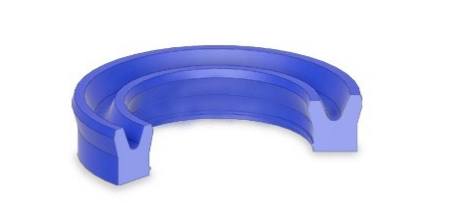

| BS |  |
0.5 m/sec | -30°C / 105°C | PU | VER |

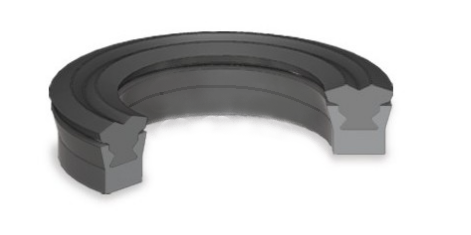

| DZ |  |
1.0 m/sec | -50°C / 120°C | PU | VER |

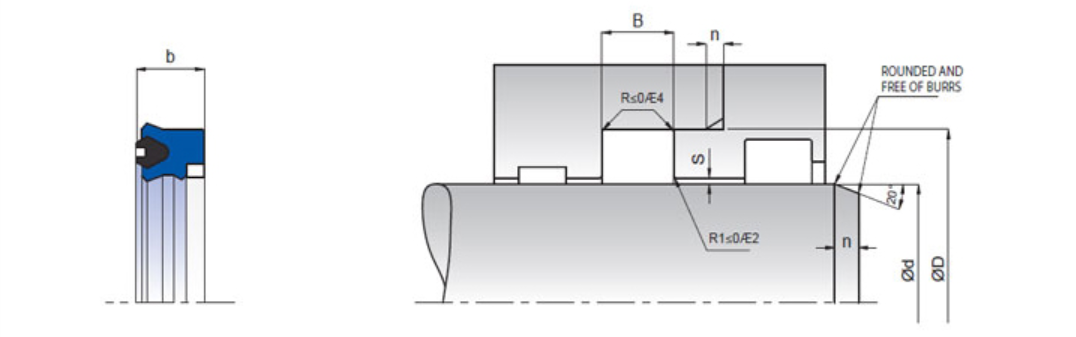

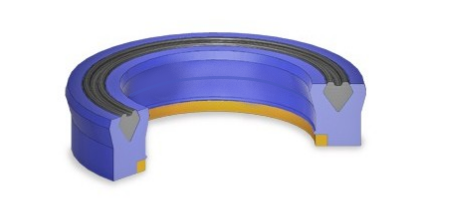

| H621 |  |
0.5 m/sec | -30°C / 105°C | PU / NBR / POM | VER |

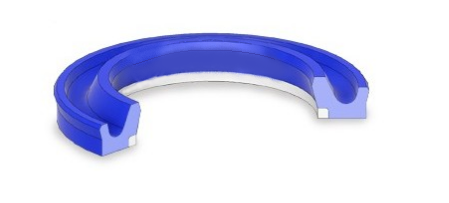

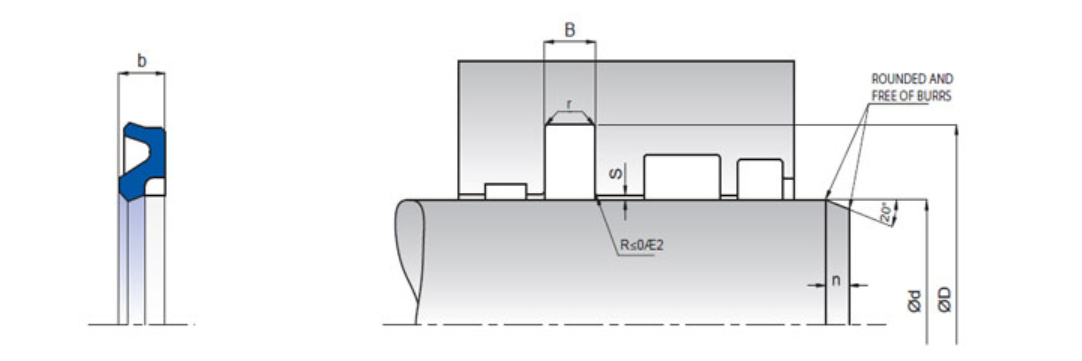

| HBY |  |
0.5 m/sec | -30°C / 110°C | PU / POM | VER |

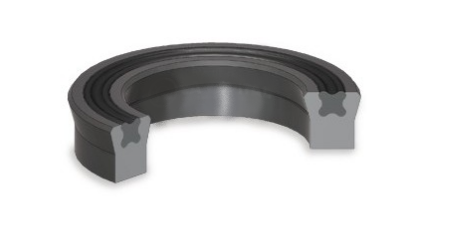

| POLYSEAL |  |
0.5 m/sec | -40°C / 110°C | PU | VER |

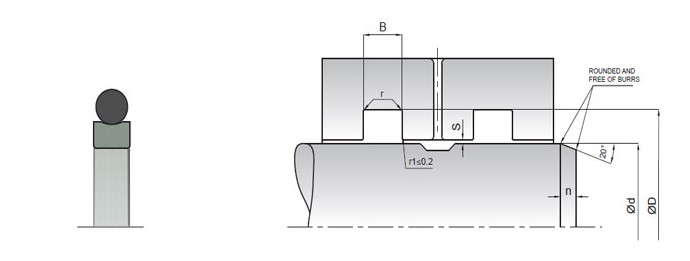

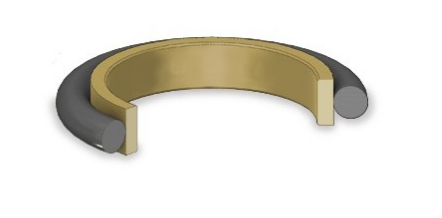

| R2B |  |
1.0 m/sec | -30°C / 100°C | NBR / PTFE | VER |

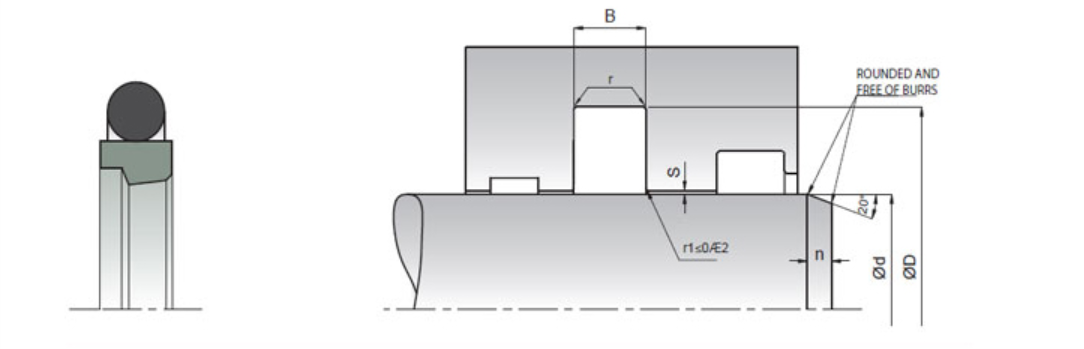

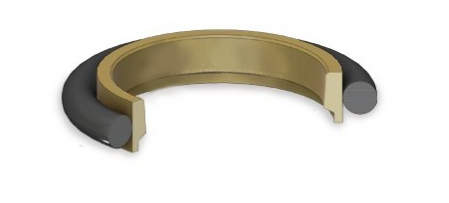

| RSS |  |
1.0 m/sec | -30°C / 105°C | NBR / PTFE | VER |

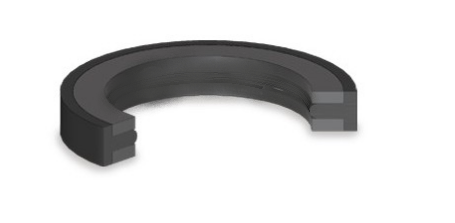

| TR |  |
1.0 m/sec | -40°C / 100°C | PU / ACERO | VER |
